PERFORATION PATTERN LIBRARY

Round Hole Staggered Pitch

RO4SP-40

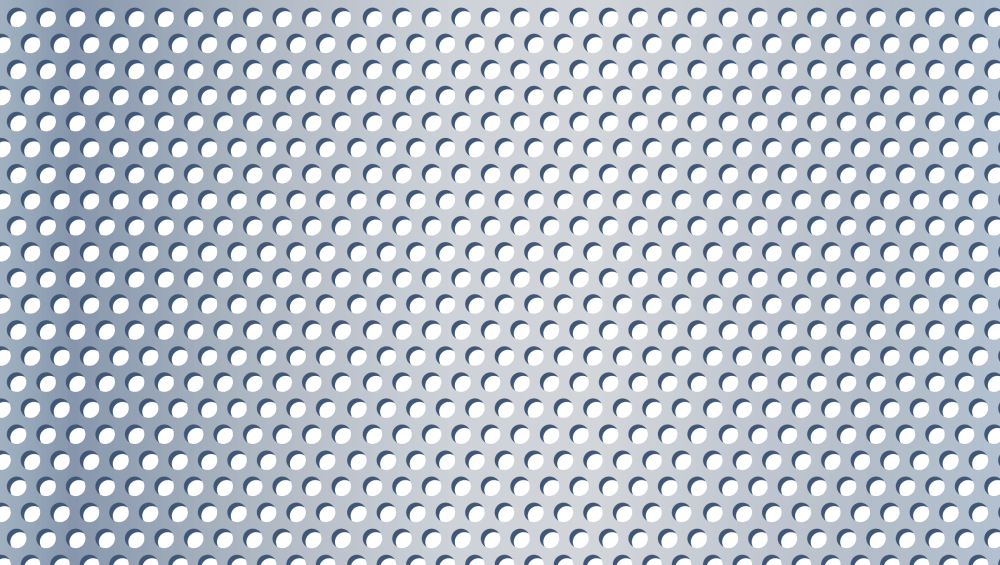

Close-up of a perforated metal sheet with round holes in a grid pattern.

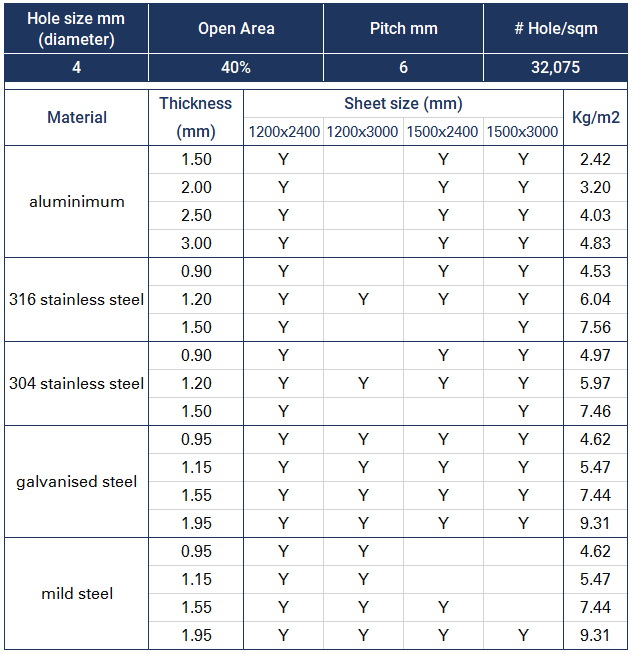

Table showing specifications of sheets made from aluminum, stainless steel, galvanized steel, and mild steel with details on thickness, open area, pitch, sheet size, and weight per square meter.

RO6SP-40

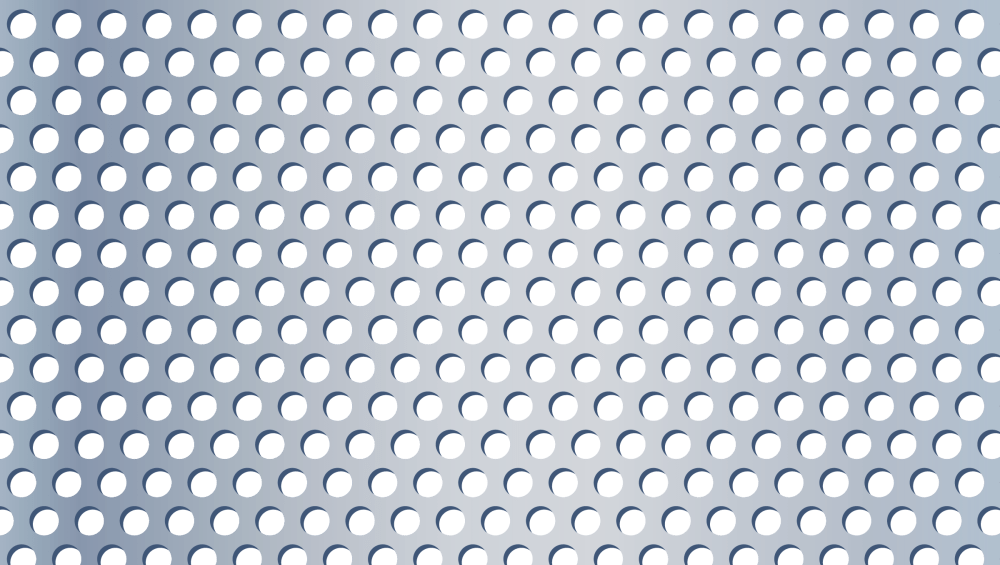

Pattern of evenly spaced black circles on a light gray perforated metal surface.
Table showing hole sizes, open area, pitch, hole count per square meter, material types, thicknesses, sheet sizes, and weight per kilogram per square meter for various metals including aluminum, stainless steel, galvanized steel, and mild steel.

RO8SP-48

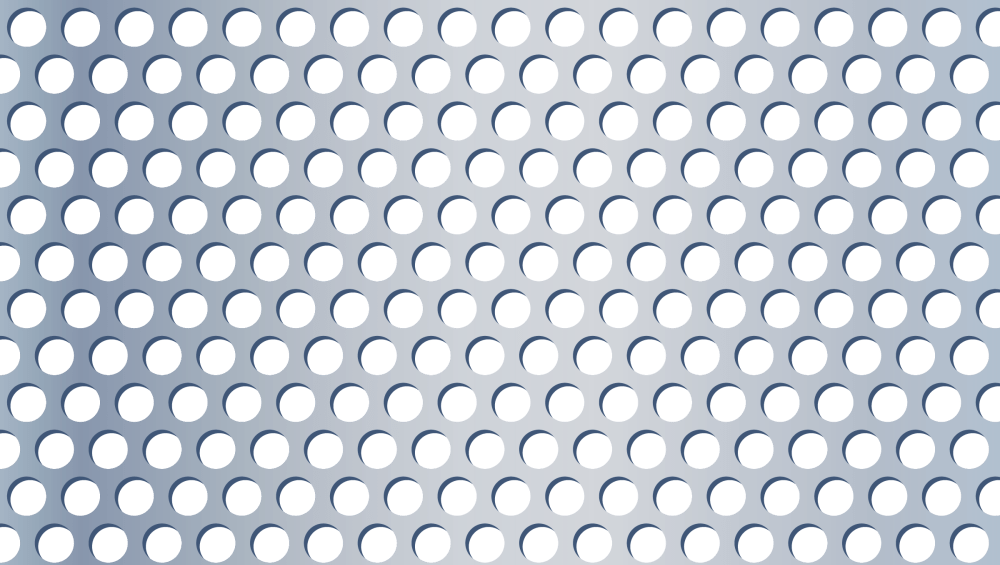

Close-up of a metallic surface with evenly spaced round holes, resembling a perforated sheet or grille.
Table showing hole sizes, open areas, pitch, hole count per square meter, material types, thicknesses, sheet sizes, and weight per square meter for aluminum, 316 stainless steel, 304 stainless steel, galvanized steel, and mild steel.

RO12SP-51

A close-up of a perforated metal sheet with evenly spaced circular holes.

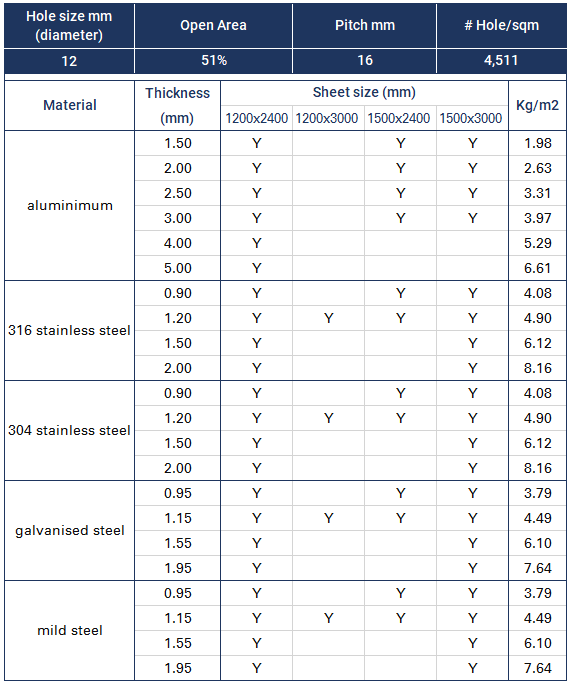

Table showing hole size, open area, pitch, hole density, material type, thickness, sheet size, and weight per square meter for different materials and dimensions.

RO16SP-46

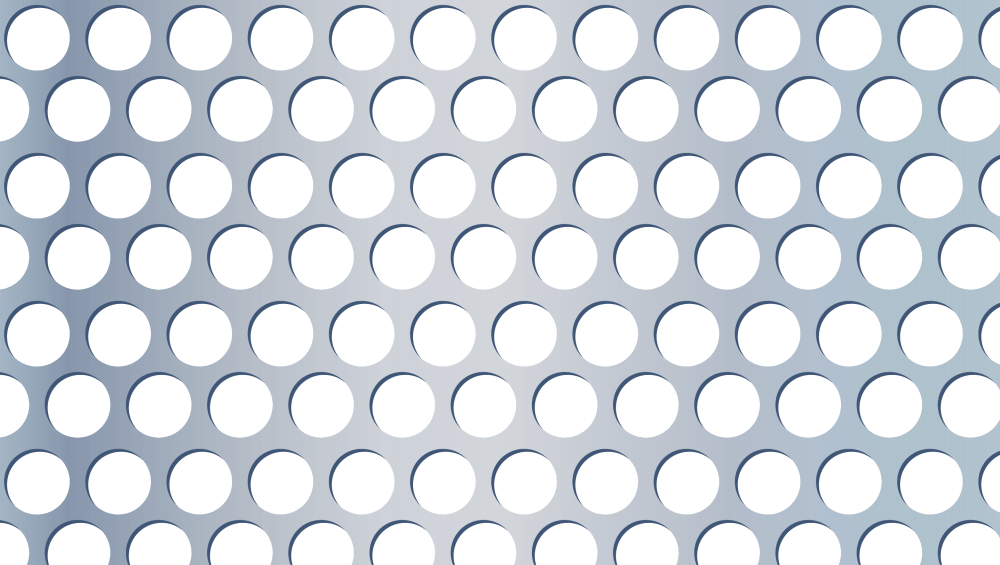

Close-up of a perforated metal sheet with evenly spaced round holes.

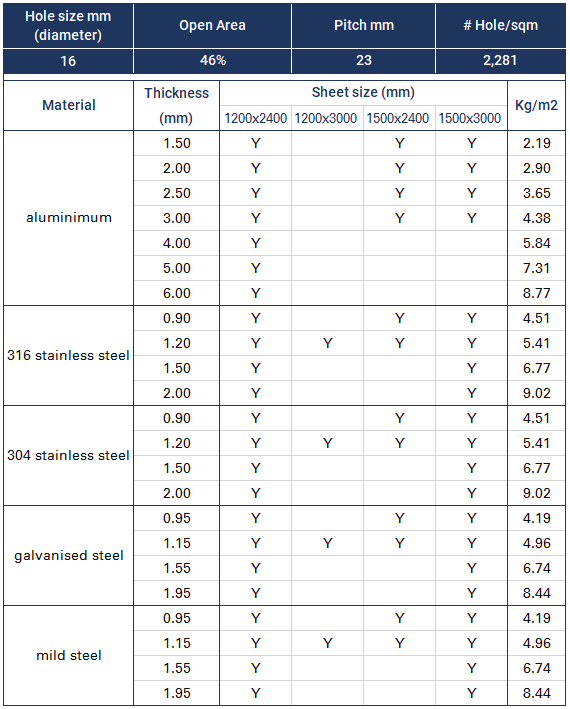

Table showing hole sizes, open areas, pitch, sheet sizes, materials, thicknesses, and weight per square meter for aluminum, stainless steel, galvanised steel, and mild steel.

RO5SP-35

Close-up of a perforated metal surface with evenly spaced round holes, showing a gradient of light and shadow.
Table showing specifications for different materials including aluminum, 316 stainless steel, 304 stainless steel, galvanized steel, and mild steel, with details on hole size, open area, pitch, sheet size, and weight in Kg/m2.

RO6SP-51

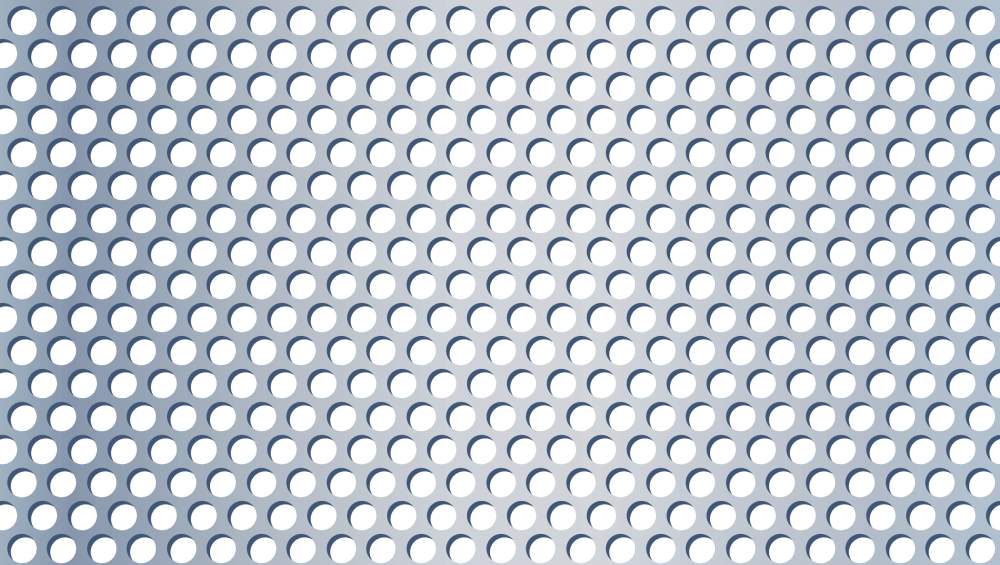

Close-up of a metallic speaker grille with circular holes arranged in a grid pattern.

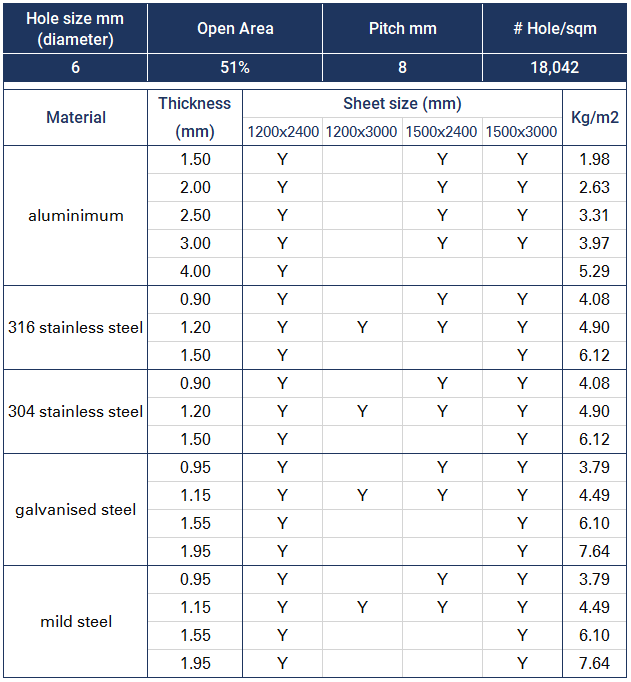

A detailed table comparing different metals, thicknesses, sheet sizes, and related specifications for hole sizes, open area, pitch, and hole density.

RO10SP-35

Close-up of a perforated metal sheet with evenly spaced circular holes.
A technical table displaying hole sizes, open area percentages, pitch sizes, number of holes per square meter, material types, thicknesses, sheet sizes, and weight per square meter for various steel and aluminum materials.

RO16SP-34

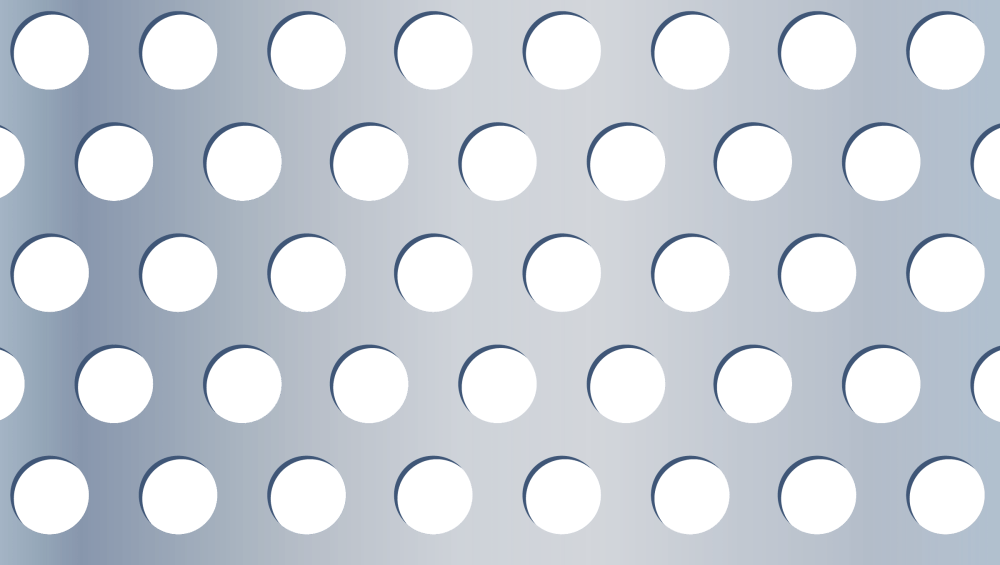

A pattern of evenly spaced black dots on a light blue background.
Table showing specifications for steel materials including hole size, open area percentage, pitch, hole density per square meter, material types, thickness, sheet size, and weight per square meter for various steel types and thicknesses.

RO21SP-51

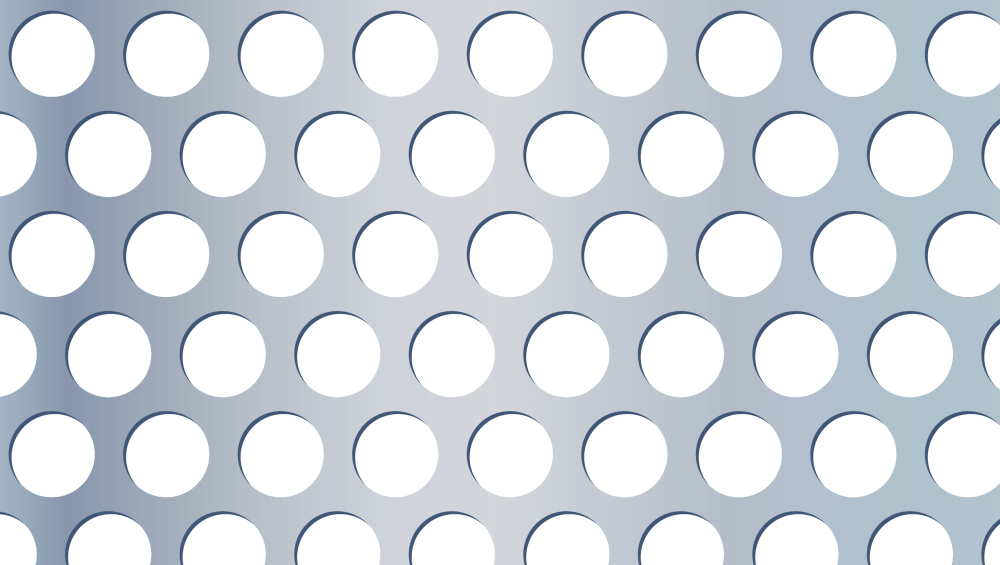

Gray background with evenly spaced black circles in a grid pattern.
Table showing hole sizes, open area percentages, pitch measurements, and material thicknesses for aluminum, stainless steel, galvanized steel, and mild steel. Includes sheet sizes and weight per square meter.

RO5SP-46

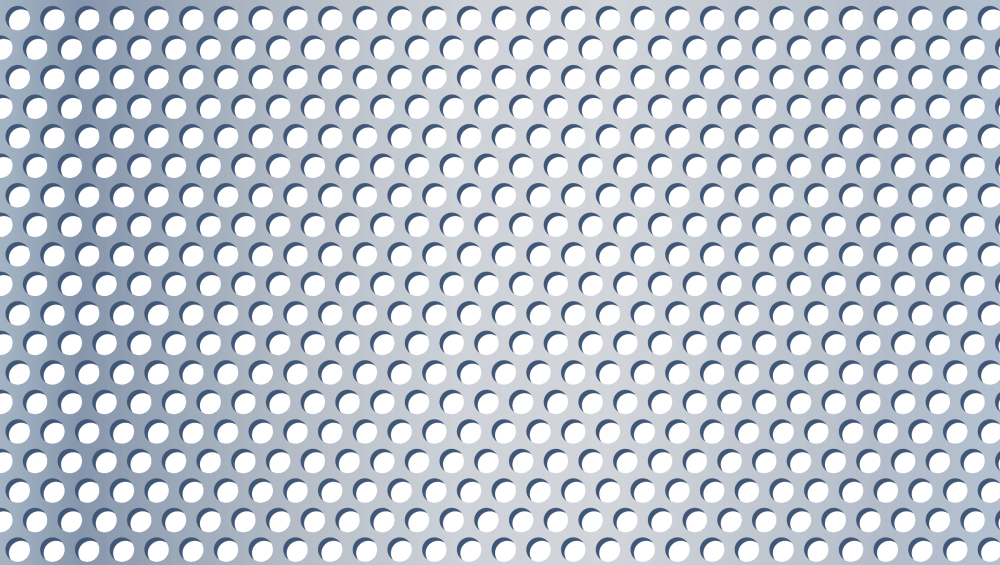

Close-up of a perforated metal surface with evenly spaced round holes.
A table showing hole sizes, open area, pitch, hole count per square meter, material types, thicknesses, sheet sizes in millimeters, and grams per square meter for different materials like aluminum, stainless steel, galvanized steel, and mild steel.

RO8SP-26

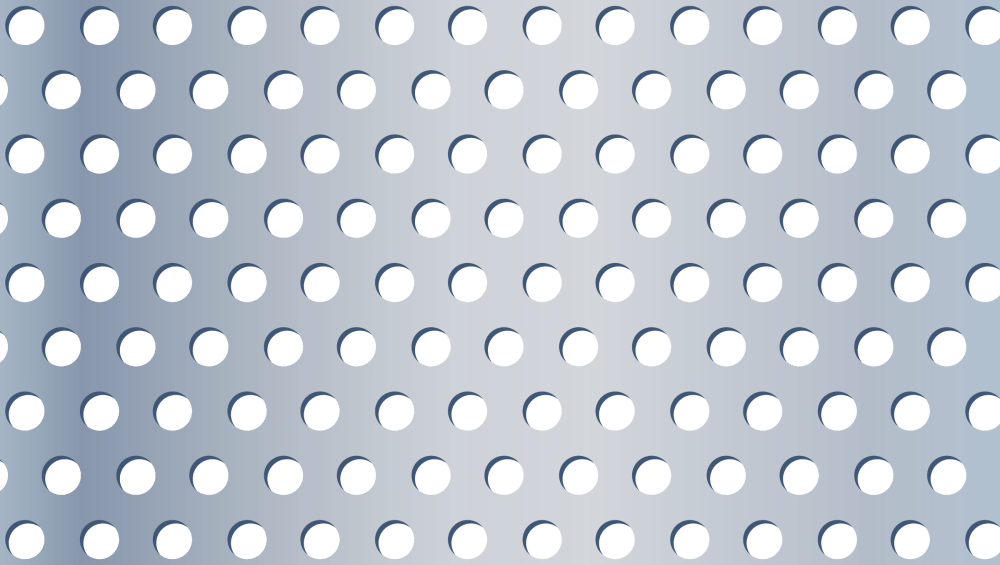

Close-up of a metallic perforated surface with evenly spaced circular holes.

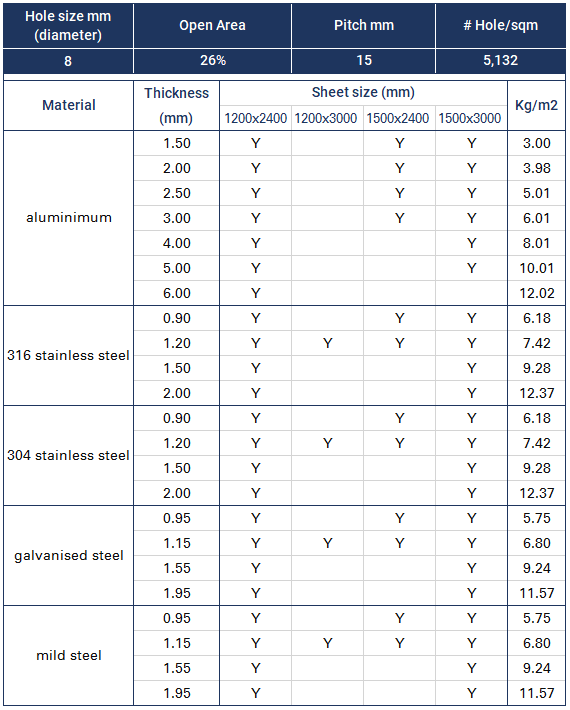

A detailed engineering table comparing hole sizes, open area percentages, pitch measurements, and material specifications for aluminum, stainless steel, galvanized steel, and mild steel sheets in various thicknesses and sheet sizes.

RO10SP-46

Close-up of a perforated metal surface with evenly spaced circular holes
A detailed technical table outlining hole sizes, open area percentages, pitch measurements, hole density per square meter, material types, thicknesses, sheet sizes, and weight per square meter for various metals including aluminum, stainless steel, galvanized steel, and mild steel.

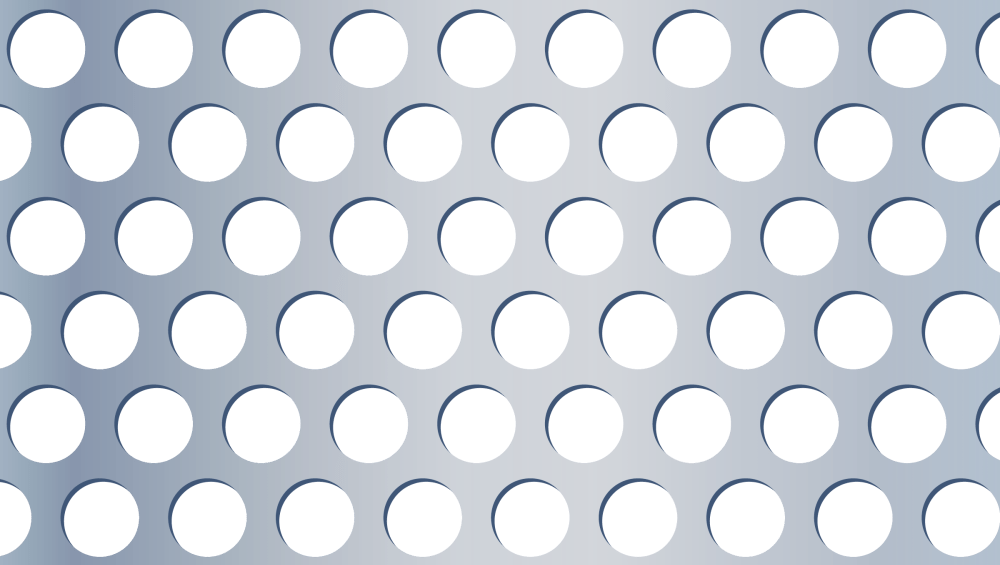

RO16SP-40

Close-up of a metal sheet with large evenly spaced circular holes.

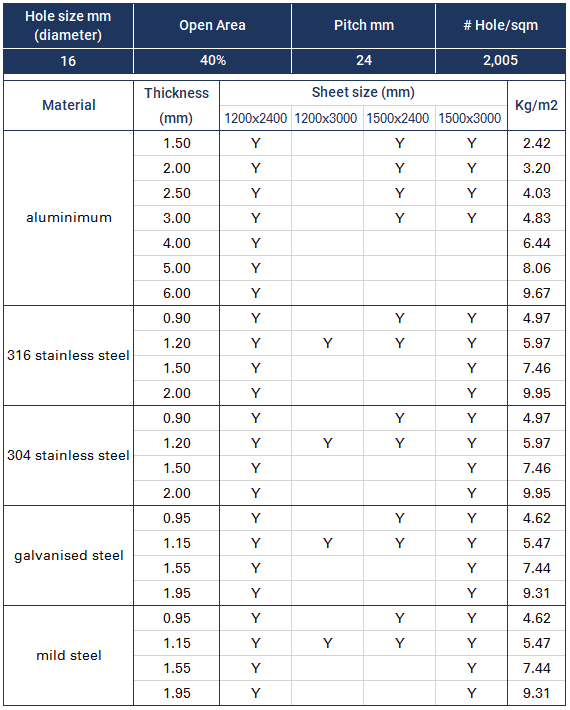

Table displaying hole sizes, open area percentages, pitch millimeters, hole density per square meter, material types, thicknesses in millimeters, sheet sizes in millimeters, and weight per square meter for aluminum, 316 stainless steel, 304 stainless steel, galvanized steel, and mild steel.

RO30SP-44

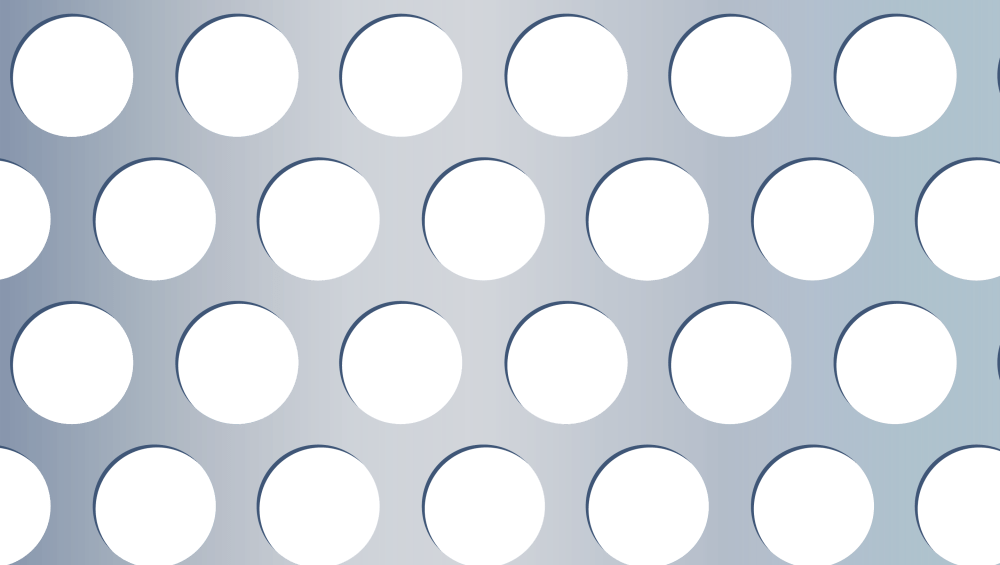

Close-up of a metal pegboard with large circular holes, typically used for organizing tools or supplies.
Table displaying technical specifications for different metal materials, including hole size in millimeters, open area percentage, pitch in millimeters, sheet size in millimeters, and weight per square meter. Materials listed are aluminum, 316 stainless steel, 304 stainless steel, galvanized steel, and mild steel, with details on thicknesses, sheet sizes, and hole counts.
