RHS Stax - Rectangular Louvre

APPLICATIONS: Solar Screening | Facade Aesthetics | Batten Dividers

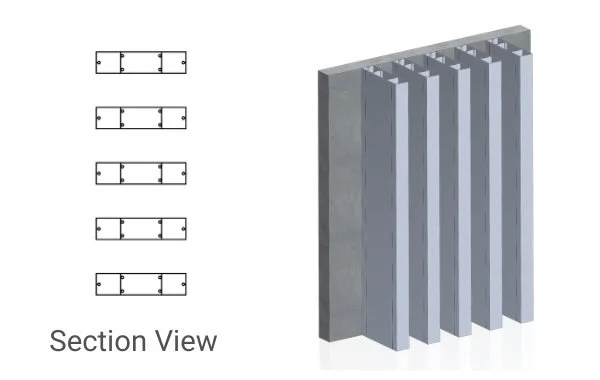

Diagram showing different section views and a 3D model of a reinforced concrete wall with vertical steel reinforcement bars.

Diagram of a rectangular shape with two smaller circles inside, one near corner (A) and one near corner (B).

40mm Depth Louvre Blade Size
(A) 40mm
(B) 25mm, 40mm, 50mm, 60mm, 80mm, 100mm, 125mm, 150mm

50mm Depth Louvre Blade Size
(A) 50mm
(B) 25mm, 50mm, 65mm, 80mm, 100mm, 125mm, 150mm, 200mm, 250mm

75mm Depth Louvre Blade Size
(A) 75mm
(B) 75mm, 100mm, 150mm

The Hyperion louvre system delivers exceptional performance in sun control and façade aesthetics across commercial and residential projects. Designed for installation in vertical or horizontal configurations, with blade widths ranging from 70mm to 600mm, Hyperion offers a striking architectural presence for shading, screening, or feature facades.

PRODUCT DETAILS
Made from extruded aluminium
Installation – vertically or horizontally
Finishes – Powder-coat / Anodising
Options – Modular Panels / Single Blades / Awnings / Cantilevered
Operation – Fixed / Stackable
Meets all relevant Australian Standard requirements
