< Balustrades / Groove SS

Groove SS+Glass

APPLICATIONS: Pool Fencing | Balcony | Voids | Privacy Screens

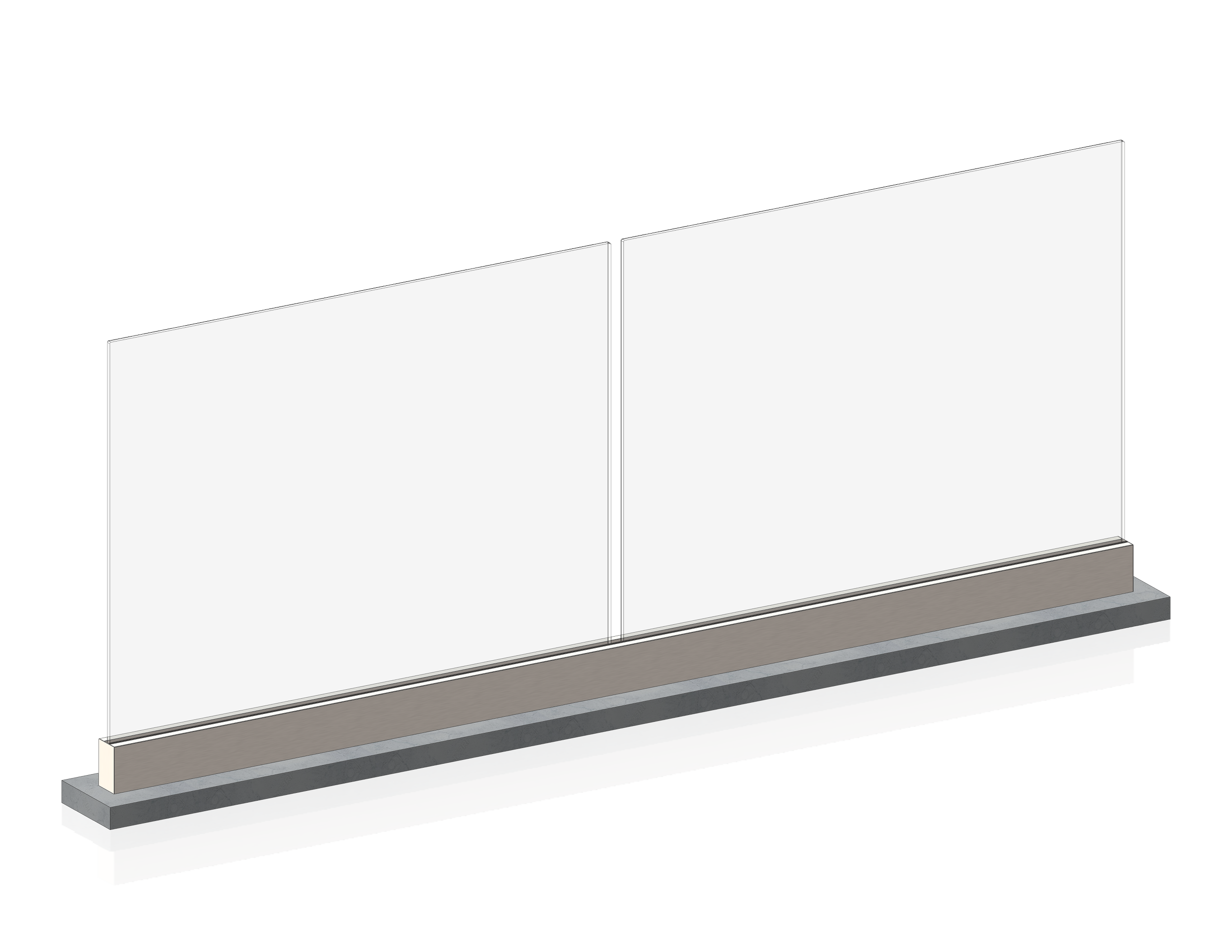

A 3D model of a glass balustrade with two frosted glass panels and a metal handrail on a base.

The Groove balustrade system features a sleek, stainless steel channel-fixed design that securely houses glass panels for a modern, uninterrupted look with maximum structural integrity and corrosion resistance — ideal for both internal and external applications.

POA. Price is subject to building regulations and windload requirements.

    • Balustrade height 1050mm

    • 316 Marine Grade Stainless Steel

    • 128mm x 72mm Heavy Duty Aluminium Channel

    • 14.28mm SGP Laminated Structural Glass

    • Level Only (Stair Void and Balcony)

    Satin Finish recommended for internal use only.

    • Pool Fencing Height 1250mm

    • Glass: Clear / Obscure Etch / Tinted

    • Handrail Top or Side Fixed

    • High Polished or Satin Finish (Internal only)

    • Matt Black Channel + Handrail

    • Stainless Steel Fascia to Channel (POA)

    • Balustrade

    • Stairs & Voids

    • Pool Fencing

    • Fence Infill

    • Surface mounted with powder-coated covers

    • Cantilevered (fully recessed into concrete or timber deck)

Applications

  • Close-up of a paper coffee cup with a black lid.

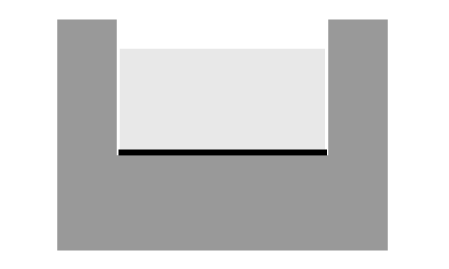

    Fence Infill

  • Simple white mailbox on a wooden post against a grey background.

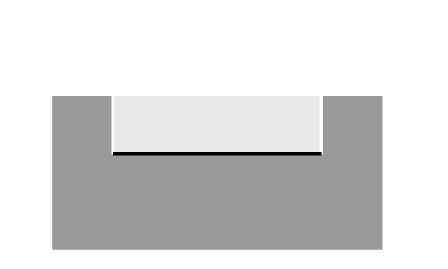

    NIB Infill

  • A washing machine with a water droplet icon indicating water level or wash cycle.

    Pool Fencing

  • The image shows three blank white rectangular cards placed on a flat surface with a black line underneath.

    Balustrading

Side Mounted Handrail Profiles

  • A long, rectangular, black and silver tray or shelf on a white background.

    Flat Bar

    50×10mm

  • Long metallic rectangular tray with a polished exterior and a dark interior, placed on a white background.

    RHS

    50×25mm

  • A shiny, metallic, cylindrical object with one half finished in a smooth, silver color and the other half in a gloss black, lying on a white surface.

    Round 38

    38mm DIA

  • A sleek, reflective black and silver cylindrical object lying on a plain white surface.

    Round 50

    50mm DIA

  • A wooden rolling pin lying on a white surface.

    48 DIA

    Timber (interior only)

  • A wooden bench with a rectangular seat and curved ends, made of polished wood.

    Inglewood

    Timber (interior only)

  • A wooden half-cylinder block with a flat base and curved top, made of light-colored wood with visible grain, on a white background.

    Slimview

    Timber (interior only)

  • A wooden shelf with a natural finish and curved edges.

    Traditional

    Timber (interior only)

  • A long wooden plank with a smooth finish and visible wood grain placed on a white background.

    Linear

    Timber (interior only)

Channel Finish Options

  • A shiny, silver, cylindrical metal pipe with a hollow interior.

    Mirror

  • A cylindrical metal pipe with a shiny silver exterior and hollow interior.

    Satin

  • Black cylindrical pipe lying at an angle.

    Matt Black

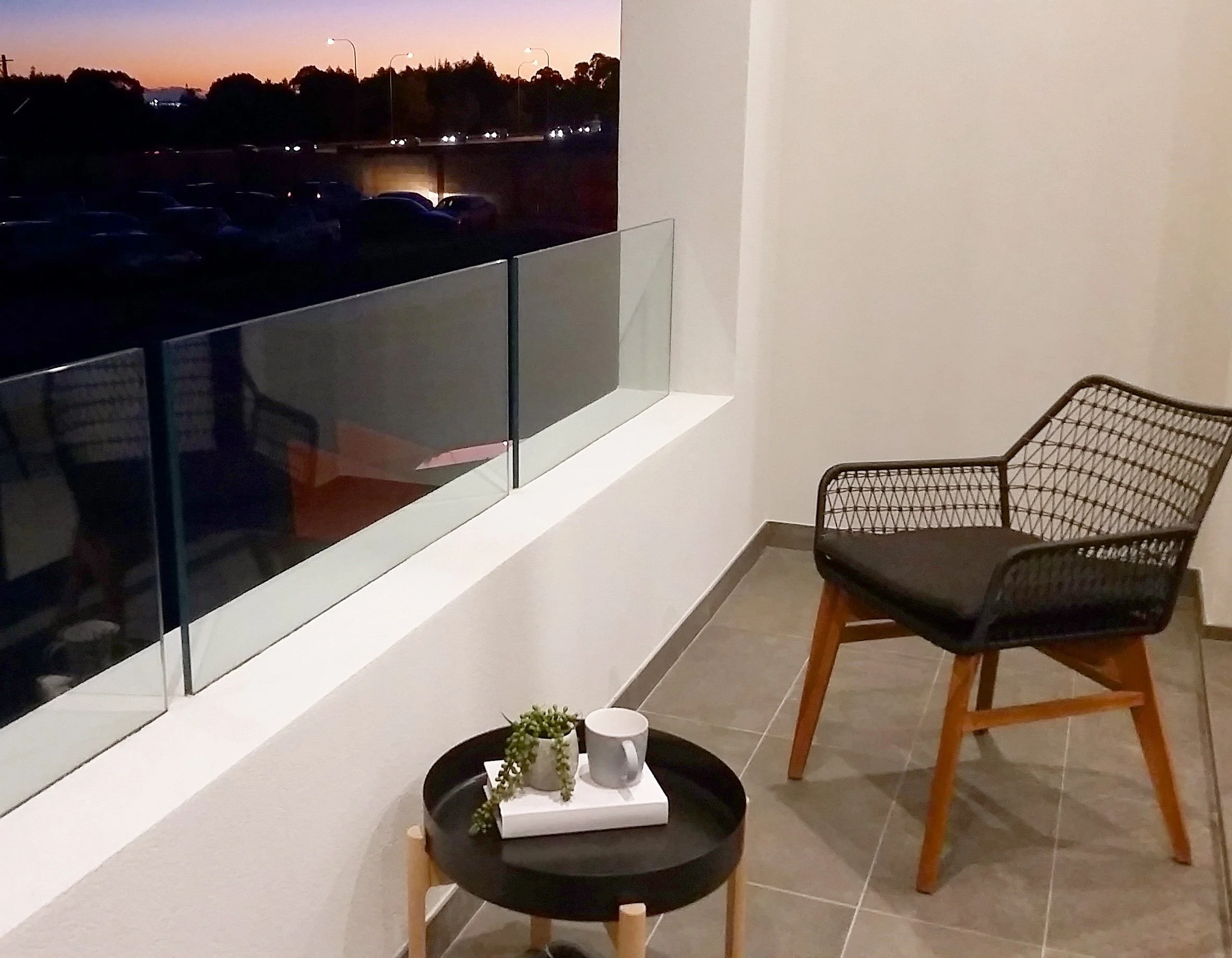

BWA Cantilevered Laminated 14.28mm SGP - No Handrail.jpg
BWA Groove Profile with stainless steel 50 Dia Side fixed Handrail 2.jpg

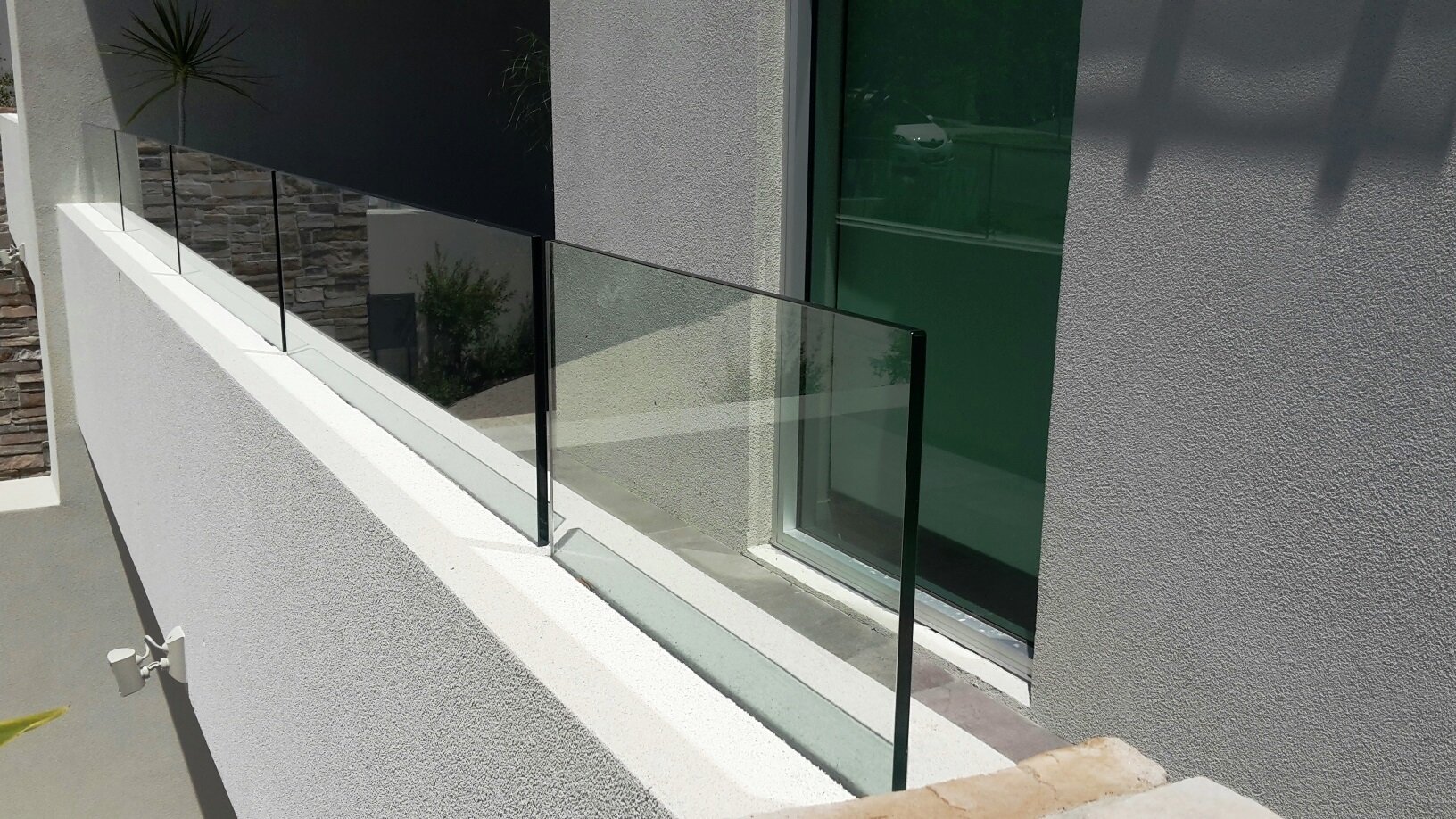

Cantilevered Glass..jpg
CANTILVERED SGP GLASS NO HANDRAIL.jpg

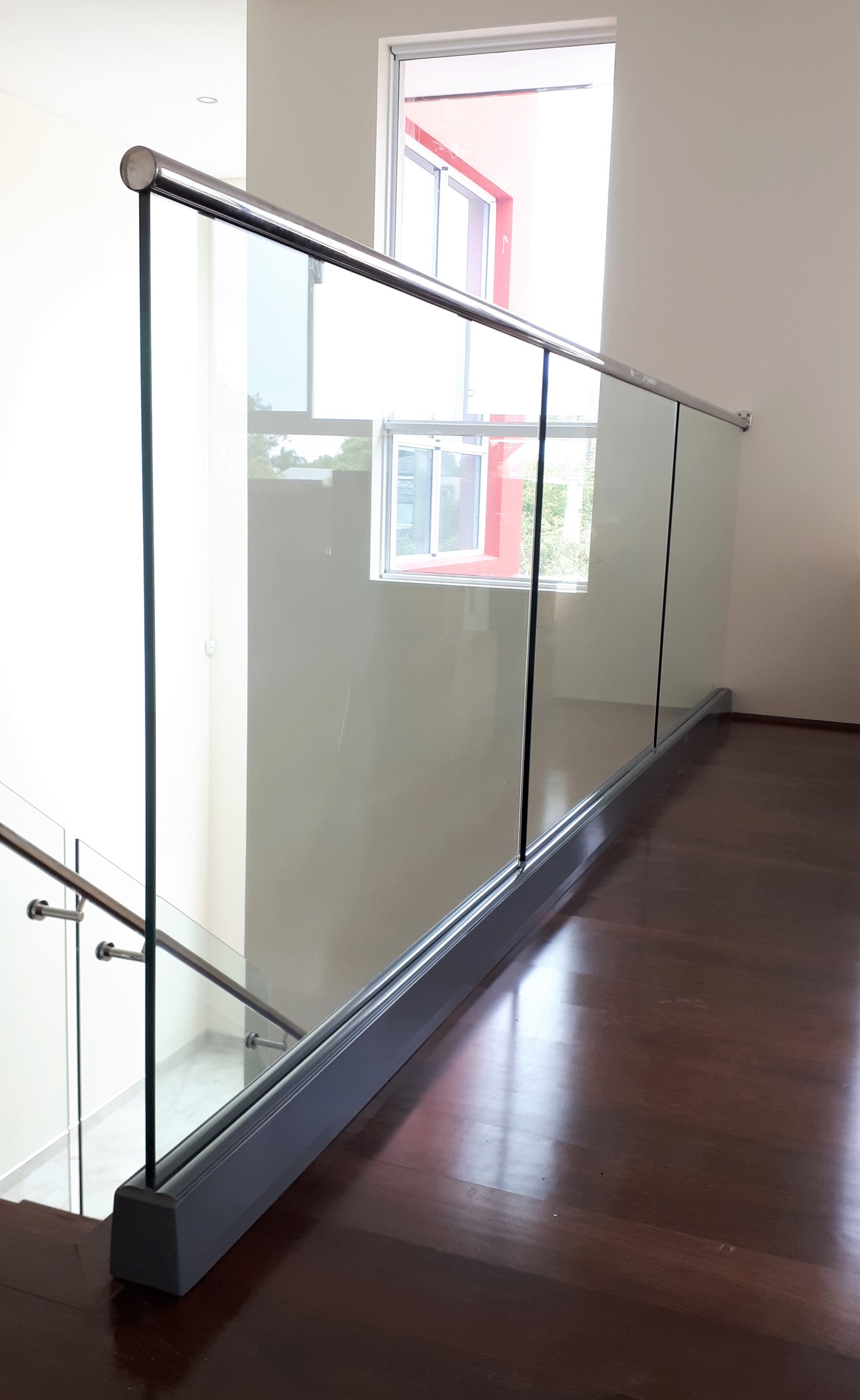

Groove with Top Fixed 50 Dia Stainless Handrail 1..jpg

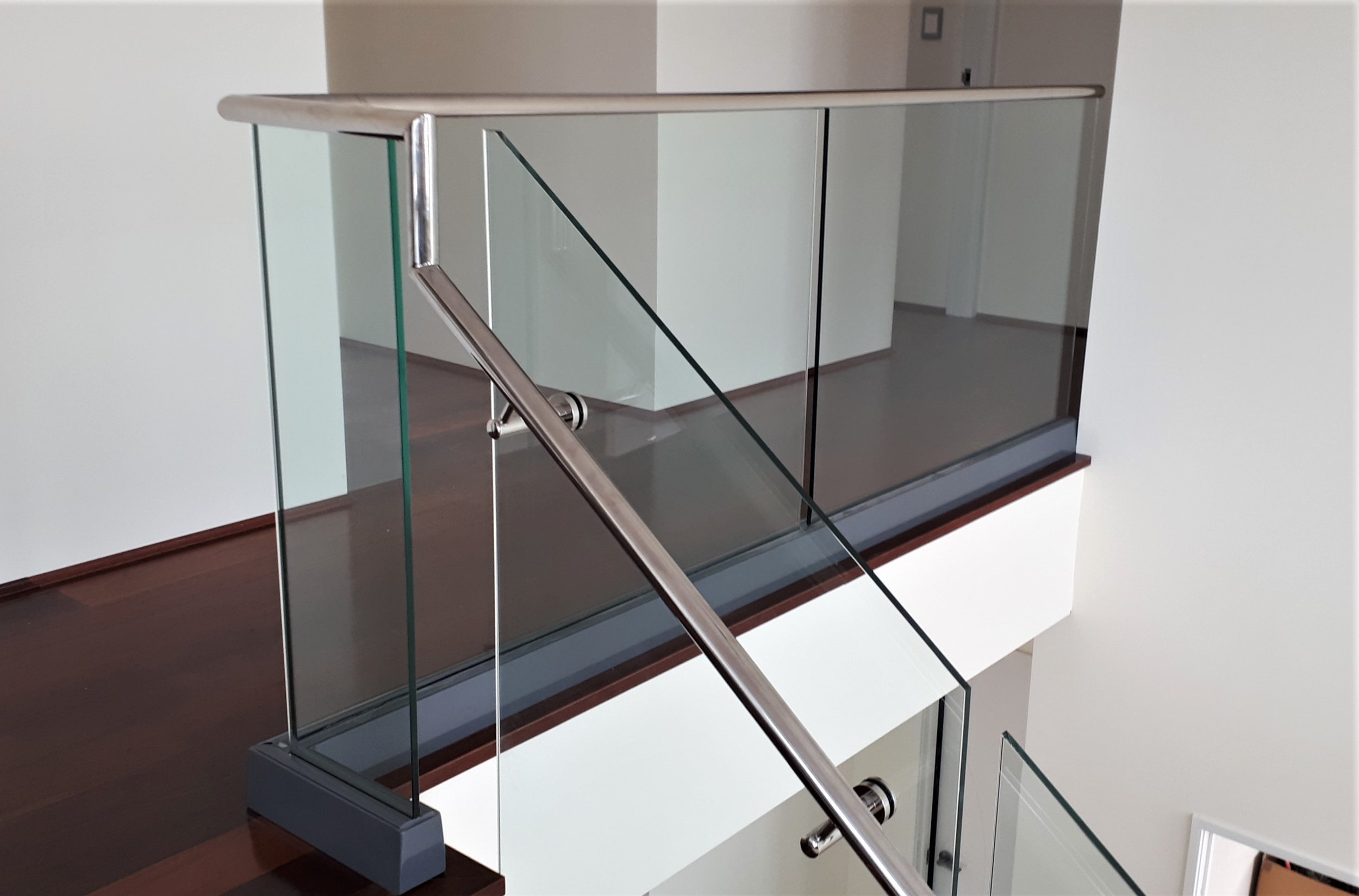

Groove with Top Fixed 50 Dia Stainless Handrail 2..jpg
south beach 005.jpg
